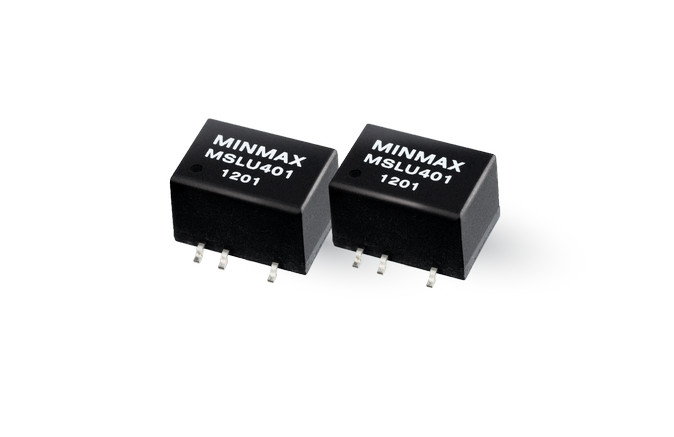

MSLU400 シリーズ
2W DC-DCパワーコンバータ
製品の特徴
- 業界標準 SMDパッケージ
- 非安定化出力
- 絶縁耐圧 1500 VDC
- 動作周囲温度範囲 -40℃ to +92.5℃
- 掃除や洗濯ができ工程(選択可能)
- IPC/JEDEC J-STD-020D.1 鉛フリーリフロープロセスに適合
- テープ＆リールパッケージ選択可能
製品説明
The MINMAX MSLU400 series is a range of 2W DC-DC converters in a SMD- Package featuring I/O isolation of 1500VDC. The very small footprint makes this product the ideal solution for many applications where a voltage has to be isolated i.e for noise reduction, ground loop elimination, in digital interfaces or where a converted voltage is required. An excellent efficiency allows an operating temperature range of -40℃ to +85℃. With a new package design these, converters are fully qualified for the higher temperature profile used in lead-free reflow solder processes. For automated SMD production lines, the product can be supplied in tape & reel package.
製品仕様
| Line Regulation | ±1.2% typ. |
| Load Regulation | 5%-11% max. (Depending on model) |
| Ripple & Noise (20MHz) | 120mVp-p max. |
| Efficiency | Up to 80% |
| I/O Isolation Voltage | 1500VDC min. |
| I/O Isolation Capacitance | 60pF typ. |
| Operating Ambient Temp. Range | -40℃ to +92.5℃ (See Derating Curve) |
| Short Circuit Protection | Short Term |
| Case Material | Plastic (UL94V-0 rated) |
| Comparison | ECAD | Model Number | Output Power | Input Voltage (VDC) | Output Voltage (VDC) | Output Current (mA) | Efficiency | Output Regulation | I/O Isolation | Package Type |
|---|
