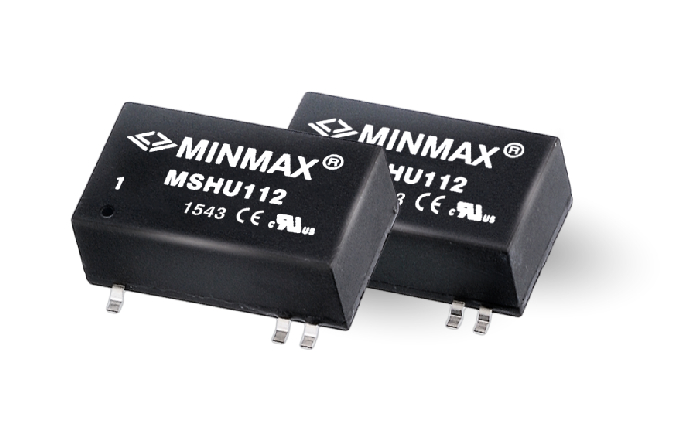

MSHU100 シリーズ
2W DC-DCパワーコンバータ
製品の特徴
- 業界標準 SMD パッケージ
- 非安定化出力
- 強化絶縁耐圧 4000VAC、動作電圧 300Vrms
- 低漏洩電流< 2µA
- 動作周囲温度範囲 -25℃ to +80℃
- 掃除や洗濯ができ工程(選択可能)
- IPC/JEDEC J-STD-020D.1 鉛フリーリフロープロセスに適合
- テープ＆リールパッケージ選択可能
- 医療用機器EMC規格EMI EN 55011 & EMS EN 60601-1-2第4版準拠
- 医療機器安全規格IEC/EN 60601-1 & ANSI/AAMI ES 60601-1第3版(1×MOPP & 2×MOOP)認証取得
- UL/cUL/IEC/EN 62368-1(60950-1)認証取得 、CEマーキング
製品説明
The MINMAX MSHU100 series is a range of 2W DC-DC converter modules providing a very high I/O isolation voltage of 4000VAC with reinforced insulation, which rated for 300Vrms working voltage. The product comes in a small SMD-package. There are 15 models available with 5V, 12V or 24VDC input and single or dual output voltages. The MSHU100 DC-DC converters offer an economical solution for many applications in instrumentation, industrial controls, medical equipment and everywhere where a certified supplementary or reinforced insulation system is required to comply with requested safety standards.
製品仕様
| Line Regulation | ±1.2% typ. |
| Load Regulation (Io = 20% - 100% load change) |
10% - 12% max. (Depending on model) |
| Ripple & Noise (20MHz) | 150mVp-p max. |
| Efficiency | Up to 75% |
| I/O Isolation Voltage | 4000VAC min. (Reinforced Insulation) |
| I/O Isolation Capacitance | 15pF typ. |
| I/O Leakage Current | 2µA max. |
| Operating Ambient Temp. Range | -25℃ to +80℃ (See Derating Curve) |
| Short Circuit Protection | Short Term |
| Case Material | Plastic (UL94V-0 rated) |
| Safety Approval | UL/cUL/IEC/EN 62368-1(60950-1), CB-Report, 2xMOOP per 3rd Edition of IEC/EN 60601-1 & ANSI/AAMI ES60601-1, CE Marking |
| Comparison | ECAD | Model Number | Output Power | Input Voltage (VDC) | Output Voltage (VDC) | Output Current (mA) | Efficiency | Output Regulation | I/O Isolation | Package Type |
|---|
