- Industrial Standard SIP-7 Package
- Ultra-high I/O Isolation 8000VDC with Reinforced Insulation, rate for 480Vrms working voltage
- Operating Ambient Temp. Range -40℃ to +95℃
- Short Circuit Protection
- UL/cUL/IEC/EN 62368-1 Safety Approval

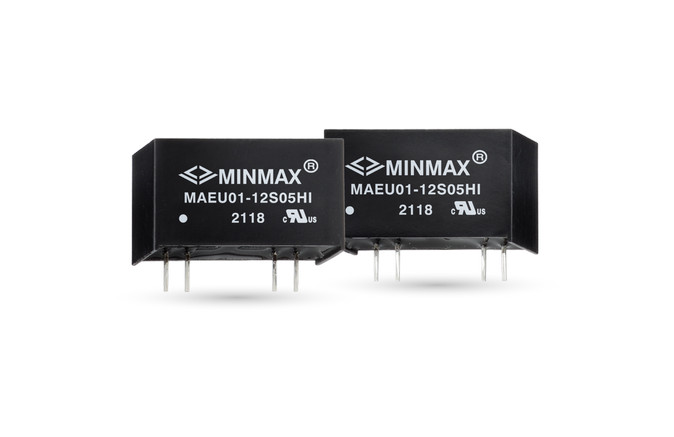

The MINMAX MAEU01-HI series is a new range of high performance 1W DC-DC converter within encapsulated SIP-7 package which specifically design for high isolation applications where reinforced insulation and high working voltage are required. There are 9 models available for input voltage of 5, 12, 24VDC. The I/O isolation is specified for 8000VDC with reinforced insulation, which rated for 480Vrms working voltage. Further features include short circuit protection and operating ambient temp. range by -40℃ to 95℃. These converters offer a cost-effective solution for wind turbine, solar panel, transportation systems, industrial control equipment where a high I/O isolation and insulation with working voltage is required.
| Line Regulation (1% change Vin) |
±1.2% typ. |
|
| Load Regulation (Io = 10% - 100% load change) |
±10% max. |
|
| Ripple & Noise (20MHz) |
75mVp-p max. |
|
| Efficiency |
Up to 81% |
|
| Working Voltage |
480 Vrms |
|
| I/O Isolation Voltage | (Test for 1s) |
8000VDC min.(Reinforced Insulation) |
| (Rated for 60s) |
3000VAC min.(Reinforced Insulation) |
|
| I/O Isolation Capacitance |
20pF typ. |
|
| Operating Ambient Temp. Range |
-40℃ to +95℃ (See Derating Curve) |
|
| Short Circuit Protection |
Continuous (Auto. Recovery) |
|
| Case Material |
Plastic (UL94V-0 rated) |
|
| Safety Approval |
UL/cUL/IEC/EN 62368-1(60950-1), CB-Report |
|
| Comparison | ECAD | Model Number | Output Power | Input Voltage (VDC) | Output Voltage (VDC) | Output Current (mA) | Efficiency | Output Regulation | I/O Isolation | Package Type |
|---|
