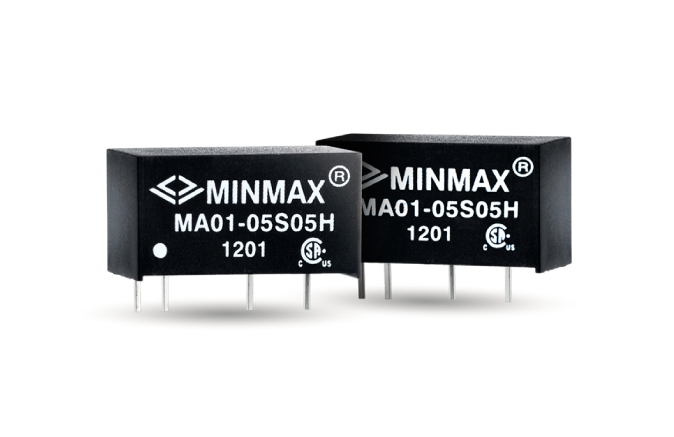

MA01H シリーズ
1W DC-DCパワーコンバータ
製品の特徴
  • 業界標準 SIP-7パッケージ
  • 半安定化出力電圧
  • 最大88%の効率
  • 絶縁耐圧 3000 VDC
  • 動作周囲温度範囲 -40℃~+95℃
  • UL/cUL/IEC/EN 60950-1認証取得
製品説明

The MINMAX MA01H series is a range of isolated 1W DC-DC converter modules in a small SIP-package. There are 24 models available with 5V, 12V or 24VDC input. These products provide have a typical load regulation of 3.5% to 5.5% depending on model. The MA01H DC-DC converters are a compromise between a more expensive fully regulated converter and a non-regulated converter. They offer the designer a solution for many cost critical applications where the output voltage variation has to be kept in a certain limit under all load conditions.

製品仕様
Line Regulation ±1.05% typ.
Load Regulation 2.9% - 6.2% max. (Depending on model)
Ripple & Noise (20MHz) 30mVp-p typ.
Efficiency Up to 88%
I/O Isolation Voltage 3000VDC min.
I/O Isolation Capacitance 60pF typ.
Operating Ambient Temp. Range -40℃ to +95℃ (See Derating Curve)
Short Circuit Protection Short Term
Case Material Plastic (UL94V-0 rated)
Safety Approval  UL/cUL/IEC/EN 60950-1, CB-Report
Comparison ECAD Model Number Output Power Input Voltage (VDC) Output Voltage (VDC) Output Current (mA) Efficiency Output Regulation I/O Isolation Package Type
(MA01-05S05H@,@MA01-05S09H@,@MA01-05S12H@,@MA01-05S15H@,@MA01-12S05H@,@MA01-12S09H@,@MA01-12S12H@,@MA01-12S15H@,@MA01-24S05H@,@MA01-24S09H@,@MA01-24S12H@,@MA01-24S15H) Datasheet
